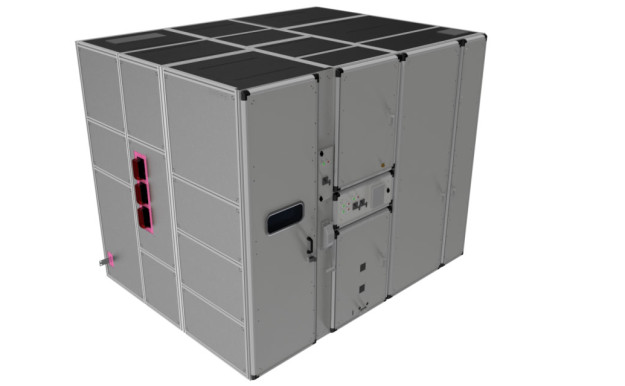

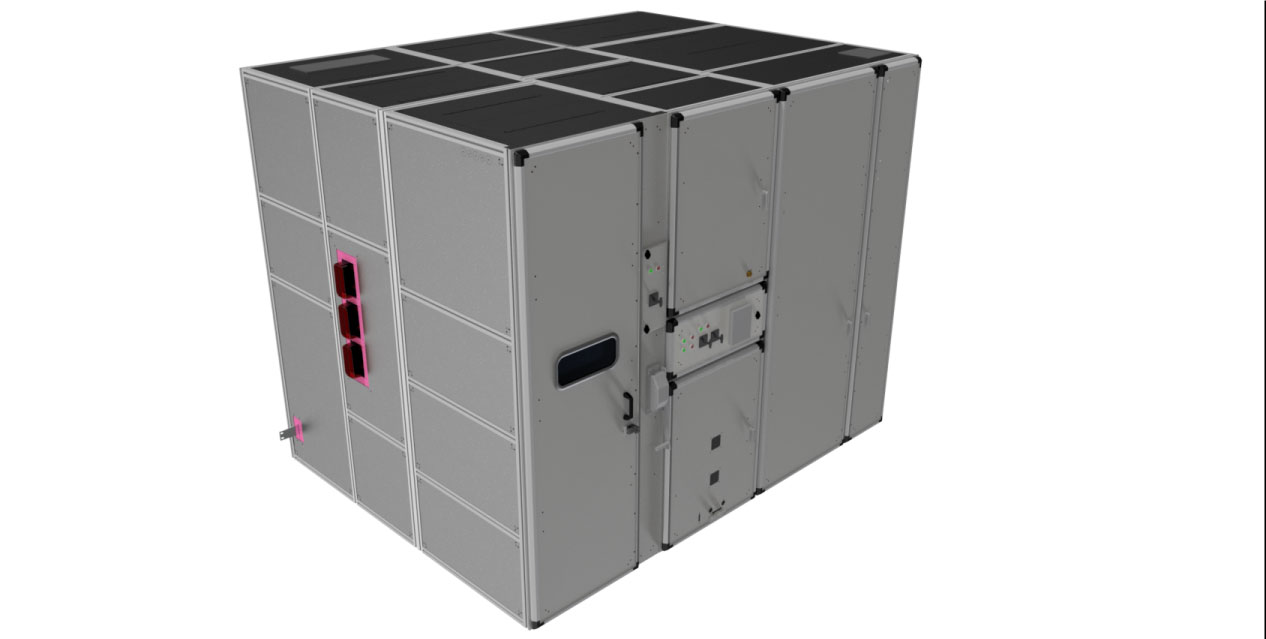

MV-GEAR-XAR medium voltage arc resistant switchgear

36000 V, 3000A, 150 kV BIL, 40 kA
25000 V, 3000A, 125 kV BIL, 40 kA
15000 V, 3000A, 95 & 110 kV BIL, 40 kA
5000 V, 4000A, 60 kV BIL, 50 kA

Type 1A to 2BC, 31.5 kA maximum default current

New heavy duty aluminium extrusion structure design

Indoor or outdoor NEMA3R

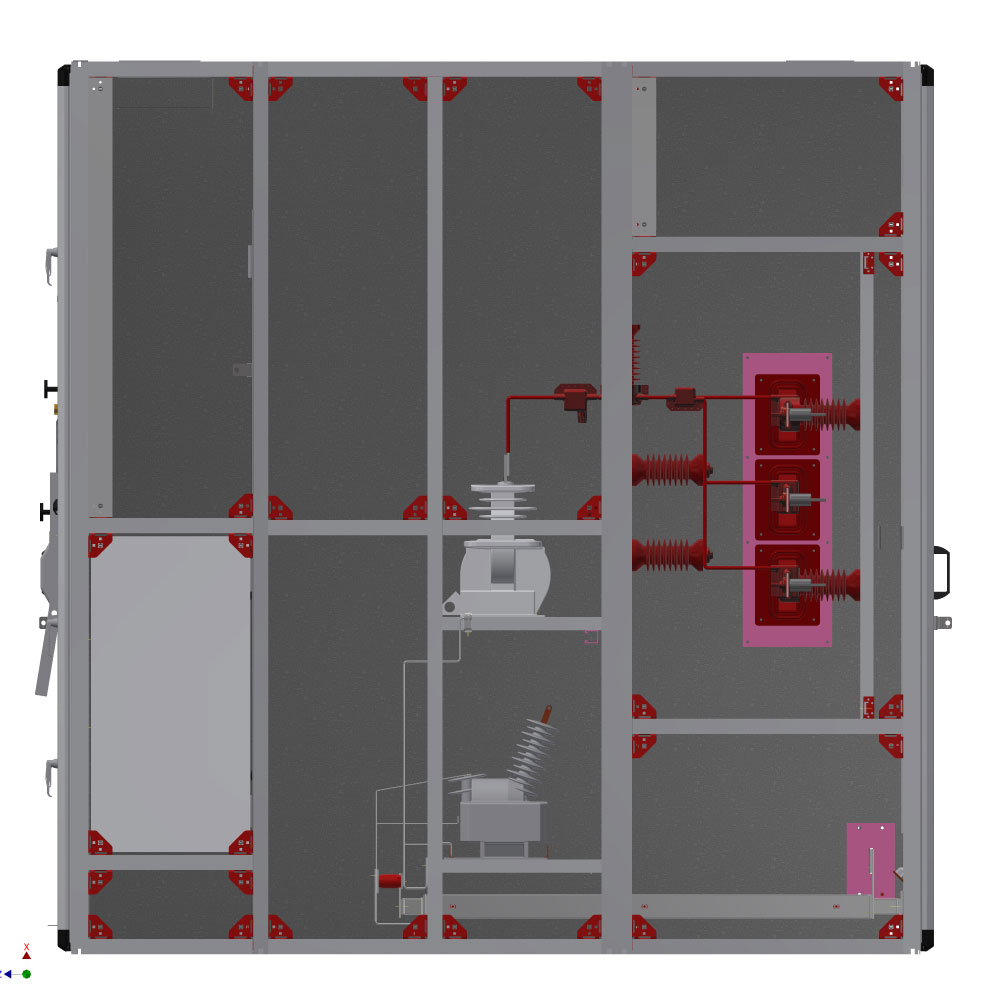

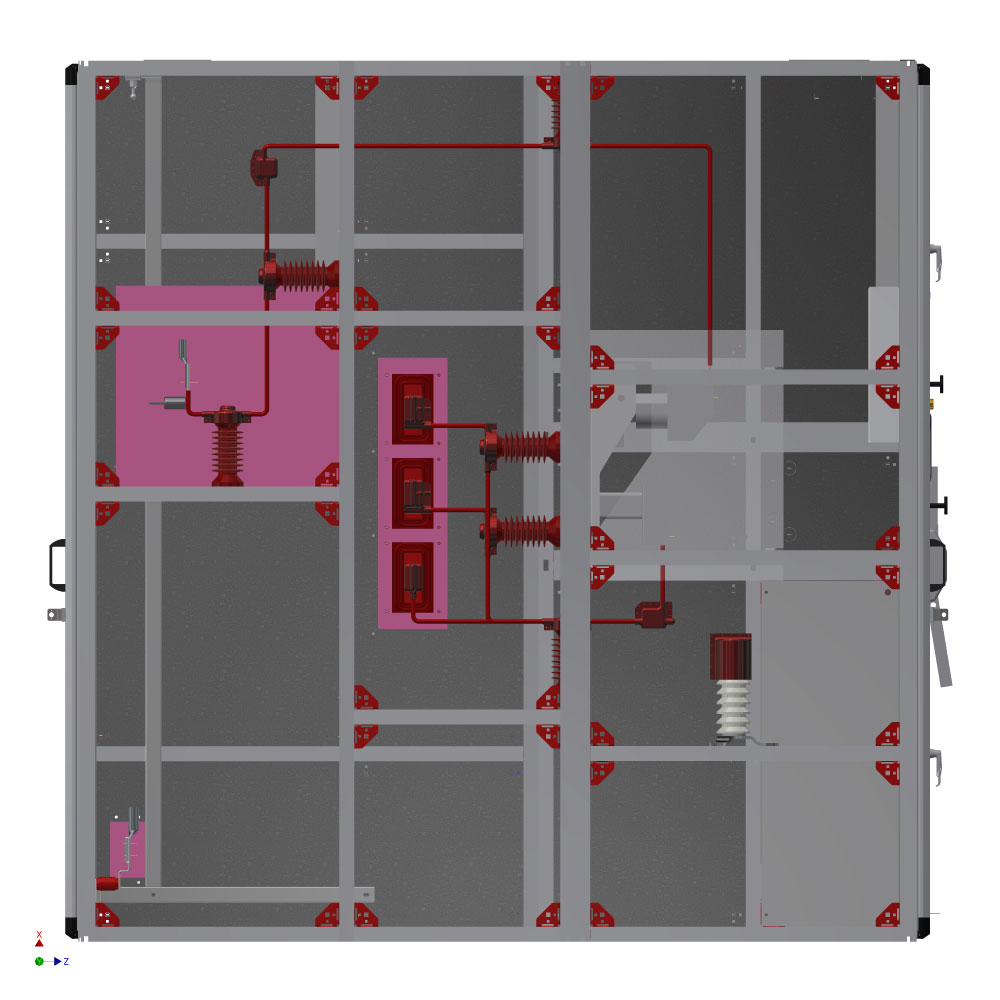

Multiple configurations available (breaker, metering, PT drawers)
2-high breaker design available

Options

• cradle integrated motor enabling major component remote control racking (breaker, drawers) using a computer or a smart phone (security code protected)
•  internal camera for thermal readings and to supervise breaker displacement and shutter state

Products:

• load break switches, fused or non-fused
• vacuum circuit breakwers, fix mounted or draw-out
• utility metering sections
• potential transformer drawers

Built to current CSA C22.2 no. 31 & C22.2 no.201 and IEEE C37.20.3 & C37.20.7
