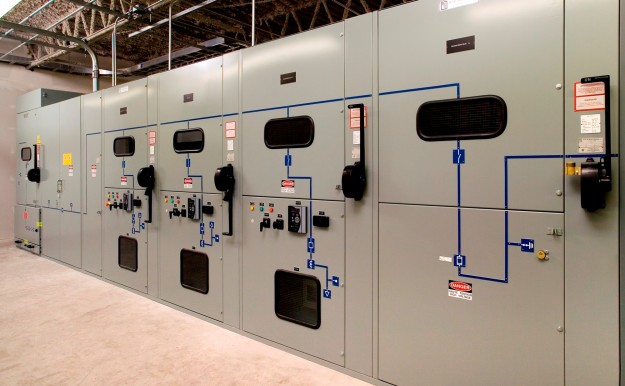

MV-GEAR-X Medium voltage switchgear

CSA approved for the following ratings:

36000 V, 3000A, 150 kV BIL, 40 kA
25000 V, 3000A, 125 kV BIL, 40 kA
15000 V, 3000A, 95 & 110 kV BIL, 40 kA
5000 V, 4000A, 60 kV BIL, 50 kA

New heavy duty aluminium extrusion structure design

Metal Enclosed or Metalclad Construction

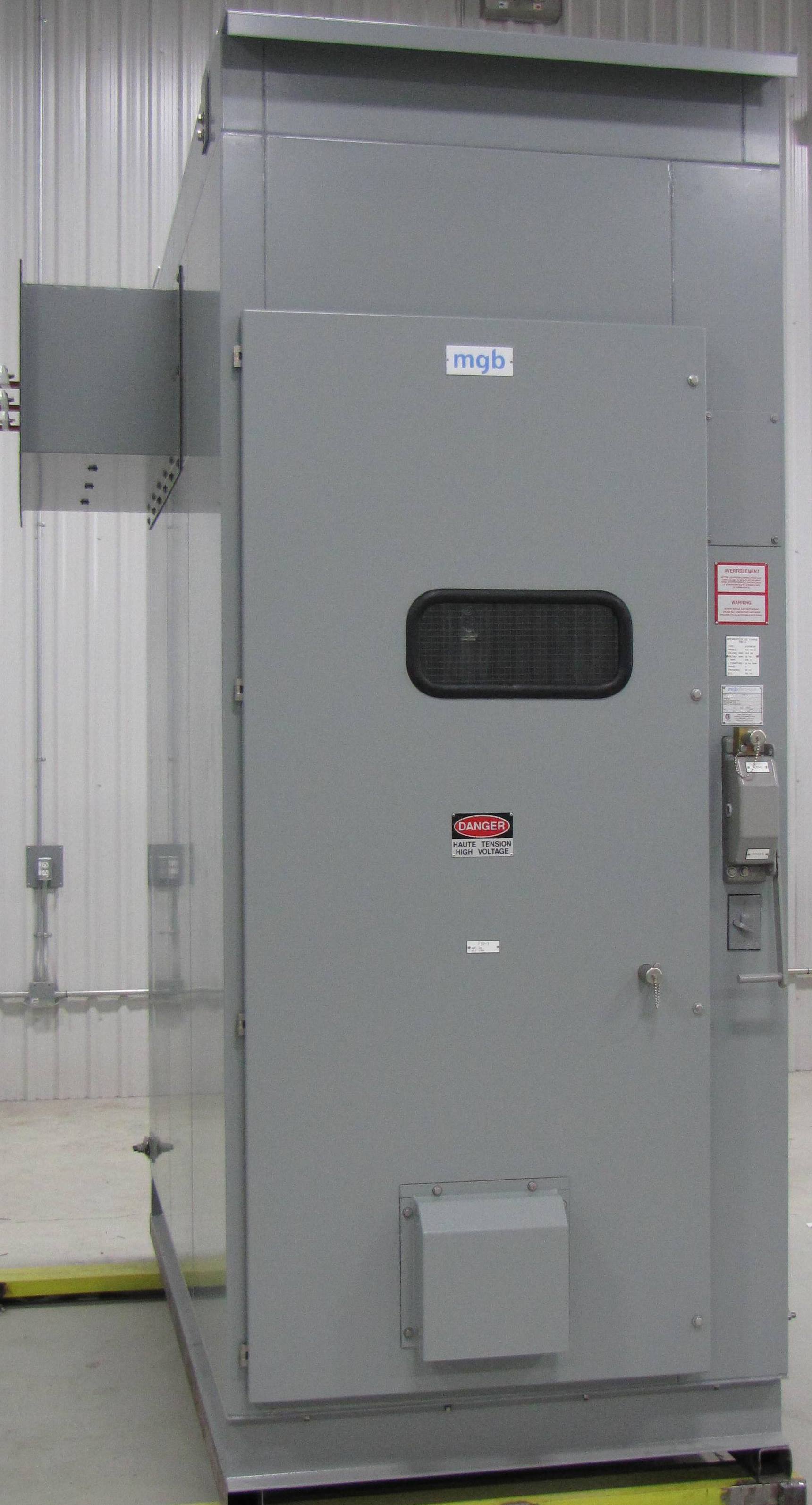

Indoor or outdoor use

Products:

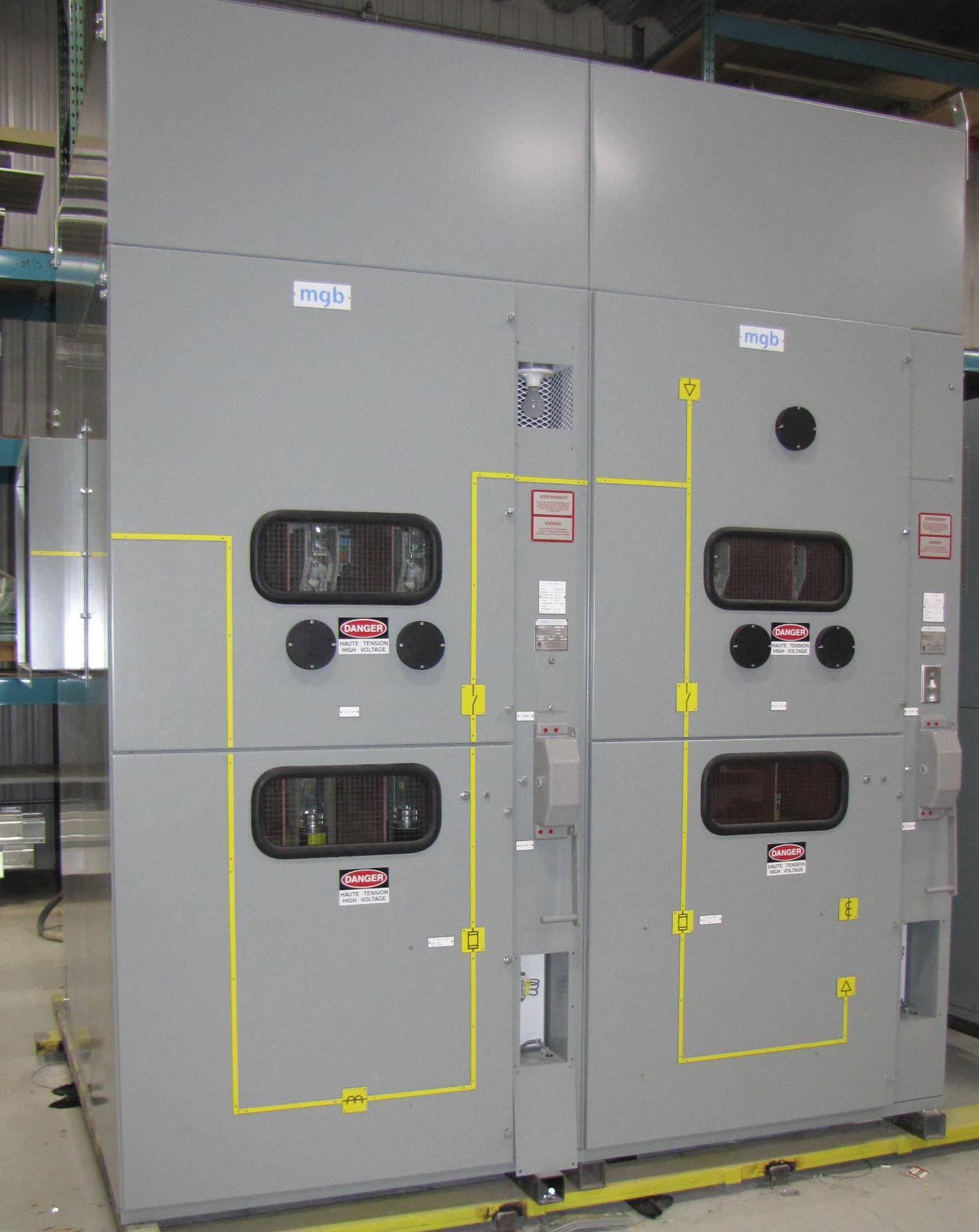

• load break switches, fused or non-fused
• SF6 or vacuum circuit breakwers, fix mounted or draw-out
• utility metering sections

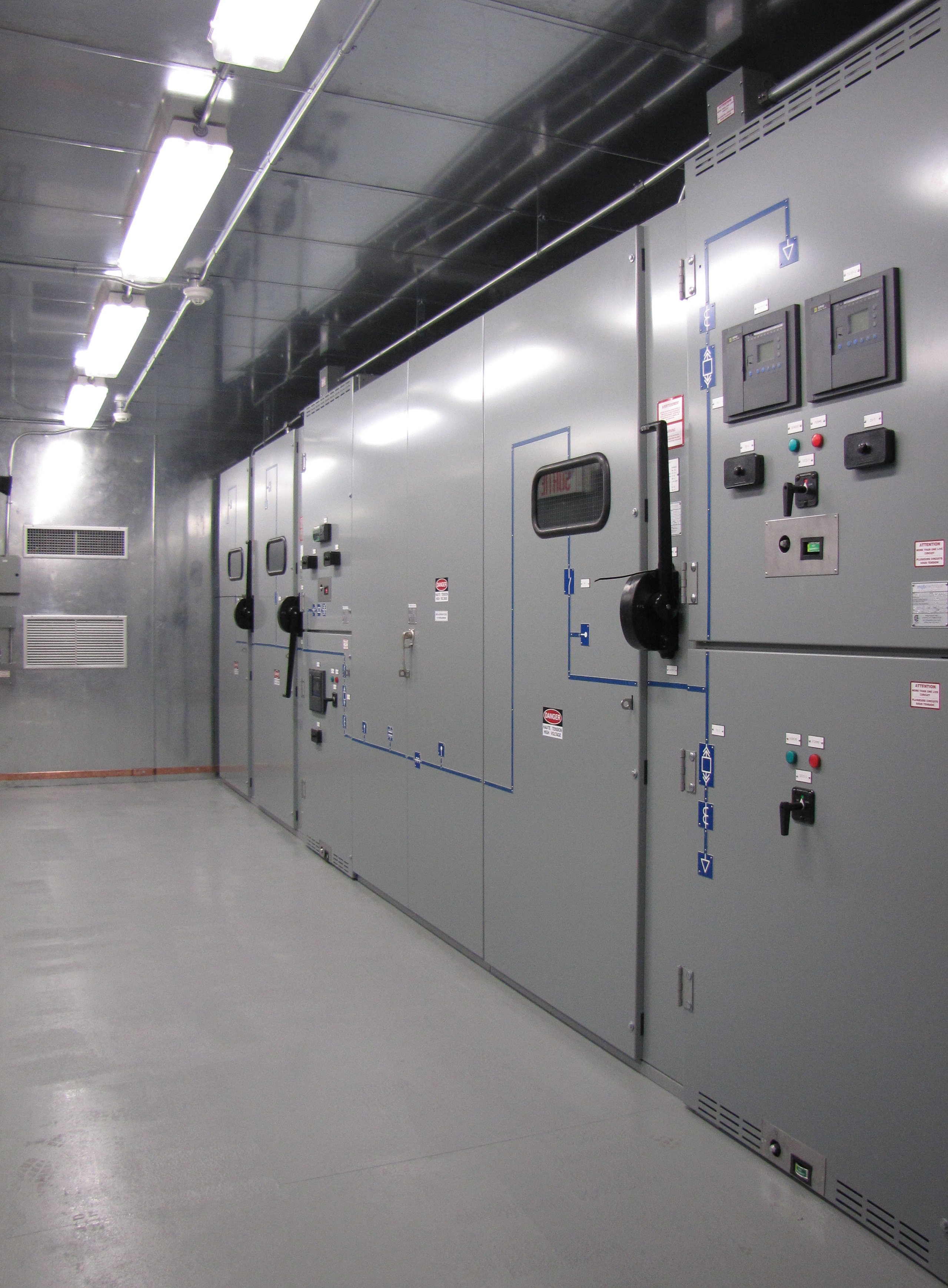

• complete substations including power transformer
• neutral cabinets
• potential transformer drawers

Modular design to add to existing switchgear
Custom made fabrication – special dimensions available

Built to current CSA C22.2 no. 31 and C22.2 no.201 standards
